Deep Learning for Predictive Maintenance in Industrial IoT Systems

Industrial plants are increasingly instrumented with high-frequency sensors measuring vibration, temperature, pressure, current, and flow across rotating equipment, compressors, and pumps. Under Industry 4.0 and Industrial IoT (IIoT), this data is the backbone of predictive maintenance strategies that move organizations beyond reactive and time-based maintenance toward condition-based and prescriptive interventions. Traditional signal-processing and shallow machine learning pipelines (hand-crafted features + random forests/SVMs) struggle with the scale, multi-variable correlations, and non-stationarity of industrial time series. Deep learning—particularly Convolutional Neural Networks (CNNs), Long Short-Term Memory (LSTM) networks, and Transformer architectures—has emerged as a powerful engine for AI predictive maintenance in rotating machinery, turbines, compressors, and pumps.

This paper surveys and compares CNNs, LSTMs, and Transformers for time-series sensor data in industrial predictive maintenance settings. We (i) describe the Industrial IoT data landscape, including vibration-based condition monitoring and Remaining Useful Life (RUL) prediction; (ii) outline architecture patterns for 1D CNNs, sequence models, and self-attention for multivariate time series; and (iii) review recent applications of deep learning to rotating equipment and turbomachinery, including LSTM autoencoders for anomaly detection, hybrid CNN–LSTM pipelines, and Transformer-based RUL and anomaly models.

We then position these models within IoT predictive maintenance and asset performance management predictive maintenance platforms, discussing how deep learning models are operationalized inside modern predictive maintenance software and predictive maintenance solutions from APM vendors and cloud providers. We compare CNN, LSTM, and Transformer approaches along axes of accuracy, data requirements, interpretability, latency, and ease of deployment, and we highlight open challenges in self-supervised learning, domain adaptation, federated learning, and uncertainty-aware decision-making. Throughout, we emphasize practical guidance for engineers designing AI predictive maintenance pipelines for rotating equipment, compressors, and pumps in real industrial environments.

Asset-intensive industries—power generation, oil & gas, chemicals, metals, water, and manufacturing—rely heavily on rotating equipment, compressors, and pumps. Failures in these assets cause unplanned downtime, environmental incidents, and safety risks. Predictive maintenance aims to anticipate such failures by monitoring condition indicators and forecasting degradation before catastrophic events occur.

The rise of Industrial IoT (IIoT) has dramatically changed the data landscape. Low-cost vibration, temperature, pressure, current, and ultrasonic sensors stream high-frequency data into plant historians and cloud platforms. At the same time, commercial predictive maintenance software and predictive maintenance solutions have matured, integrating analytics and work management in cloud-based and hybrid architectures.

Despite this, many organizations still rely on manual thresholding and rules, which are brittle to changing operating conditions and cannot exploit complex multi-sensor patterns. Deep learning offers a data-driven alternative:

• • -CNNs can learn discriminative features directly from raw or transformed signals, excelling at fault classification from vibration/acoustic signatures.
• • -LSTMs can model temporal dependencies and non-linear degradation processes in multivariate time series, enabling RUL prediction and sequence-based anomaly detection.
• • -Transformers capture long-range and cross-channel dependencies with self-attention, showing promising results in RUL and anomaly prediction for industrial equipment.

A recent review of deep learning in rotating machinery highlights significant performance gains over traditional approaches, but also notes challenges around data availability, interpretability, and deployment.

This paper addresses three main questions:

• 1. How do CNNs, LSTMs, and Transformers differ conceptually for time-series sensor analysis in industrial predictive maintenance?

• 2. For rotating equipment, compressors, and pumps, what empirical patterns emerge in terms of accuracy, latency, and robustness?

• 3. How can these models be integrated into IoT predictive maintenance and asset performance management predictive maintenance platforms in practice?

Sensors and Signals

Typical IoT predictive maintenance deployments instrument rotating equipment and pumps with sensors such as:

• • -Accelerometers for vibration (often 1–10 kHz sampling)
• • -Temperature sensors at bearings, windings, or casings
• • -Pressure and flow sensors for pumps and compressors
• • -Electrical measurements (voltage, current, power factor) for motors and drives

Industrial equipment monitoring frameworks describe how such sensors are networked through wired and wireless protocols into edge gateways and cloud platforms for continuous monitoring. Raw time-series data are often noisy, non-stationary, and influenced by operating conditions (load, speed, process state). Domain experts traditionally convert them into engineered features (RMS, kurtosis, spectral peaks, envelope metrics), but deep learning allows direct use of raw streams or short-time Fourier transform (STFT) spectrograms as inputs.

Maintenance Strategies and Business Context

Maintenance strategies include: reactive (run-to-failure), time-based preventive, condition-based, and predictive/prescriptive. Recent systematic reviews emphasize that predictive maintenance is a key lever for improving OEE, reducing downtime, and minimizing maintenance costs under Industry 4.0.

In modern asset performance management predictive maintenance, deep learning models are embedded in APM platforms to generate health scores, RUL estimates, and risk-based maintenance recommendations, feeding into CMMS and work management systems.

Why Deep Learning?

Deep learning replaces hand-engineered features with learned representations, which can capture subtle failure precursors and multi-sensor dependencies. Reviews focused on rotating machinery fault diagnosis show CNNs and LSTMs outperform traditional methods across diverse datasets and fault types.

For industrial predictive maintenance, key tasks include:

• • -Fault classification / diagnosis (e.g., bearing inner/outer race faults, misalignment, imbalance)
• • -Anomaly detection (unsupervised/semi-supervised detection of novel behavior)
• • -RUL prediction for components such as bearings, seals, or compressor wheels

Deep models can be trained on labeled fault data, simulated degradation trajectories, or partially labeled field data using supervised, self-supervised, or semi-supervised paradigms.

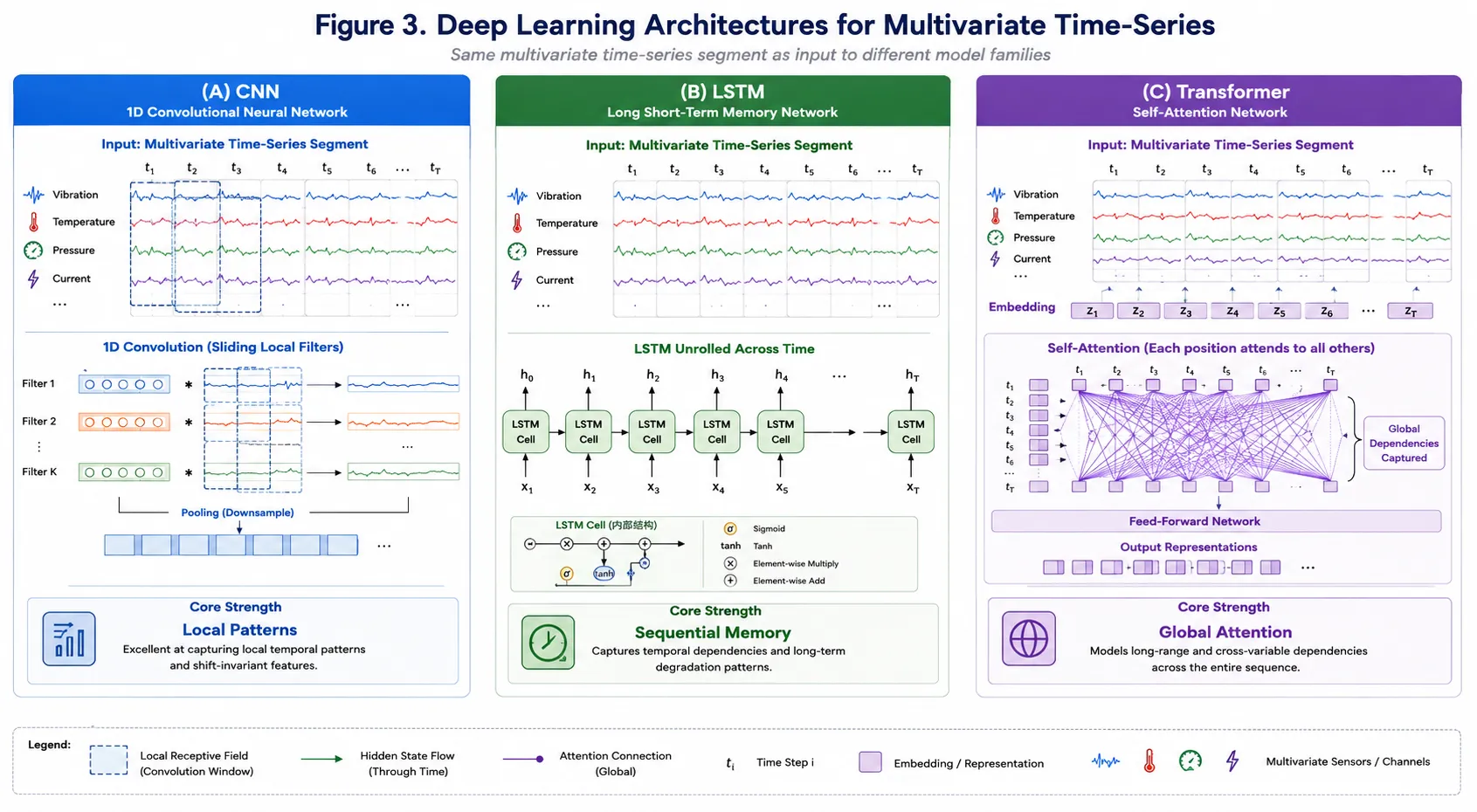

Model Families

We focus on three families widely used in AI predictive maintenance:

• • -CNNs (1D/2D): Local receptive fields and weight sharing; effective for fixed-window classification on raw or transformed signals
• • -LSTMs and RNN variants: Recurrent architectures designed to capture temporal dependencies and sequence dynamics
• • -Transformers: Self-attention architectures capturing long-range, cross-channel interactions with parallelizable training

1D CNNs on Raw Signals

CNNs can be directly applied to 1D time-series windows (e.g., 1–2 seconds of vibration). Convolutional filters learn local patterns such as frequency bands or impact signatures associated with bearing defects or cavitation in pumps. Studies on predictive maintenance of rotational machinery using deep learning demonstrate that CNNs can achieve high accuracy for fault classification tasks using raw or minimally pre-processed signals.

Key design choices:

• • -Input length and stride: enough context to capture defect signatures, balanced against latency
• • -Number of filters / layers: trade-off between expressiveness and inference cost, especially for edge deployment
• • -Multi-channel inputs: multivariate signals (x/y/z vibration, multiple sensors) can be stacked as channels

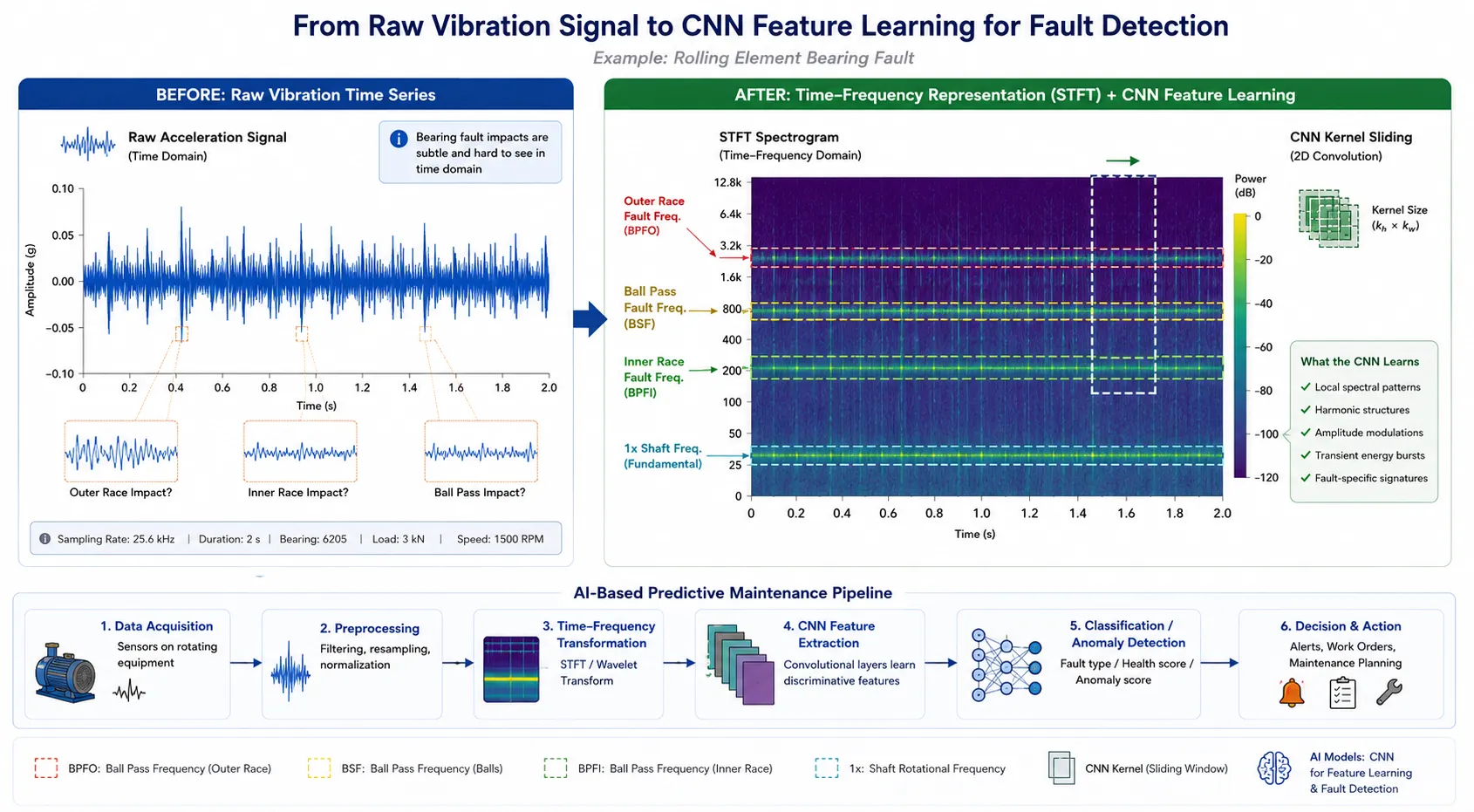

CNNs on Time–Frequency Representations

An alternative is to convert time-series to 2D time–frequency representations, such as STFT spectrograms or wavelet scalograms, and apply 2D CNNs. Hybrid CNN–LSTM–autoencoder architectures using STFT inputs have shown strong performance for rotor defect detection and anomaly detection.

Advantages:

• • -Visual patterns (ridges, hotspots) in spectrograms may be easier for CNNs to learn
• • -Off-the-shelf image architectures (ResNet, EfficientNet) can be adapted

Trade-offs:

• • -Pre-processing overhead (STFT computation)
• • -Potential loss of fine temporal structure due to windowing

LSTMs for Degradation and RUL

LSTMs extend standard RNNs with gating mechanisms that mitigate vanishing gradients, making them suitable for modeling long-term dependencies in equipment degradation. In predictive maintenance of rotating machinery, LSTM autoencoders and sequence-to-one regressors have been used to:

• • -Model normal behavior and detect anomalies when reconstruction error spikes
• • -Predict RUL of components based on sequences of sensor readings, sometimes combined with Bayesian inference for uncertainty estimates

The NASA C-MAPSS turbofan dataset is a common benchmark for RUL; Transformer- and LSTM-based models trained on this dataset are frequently used as reference implementations for AI predictive maintenance strategies.

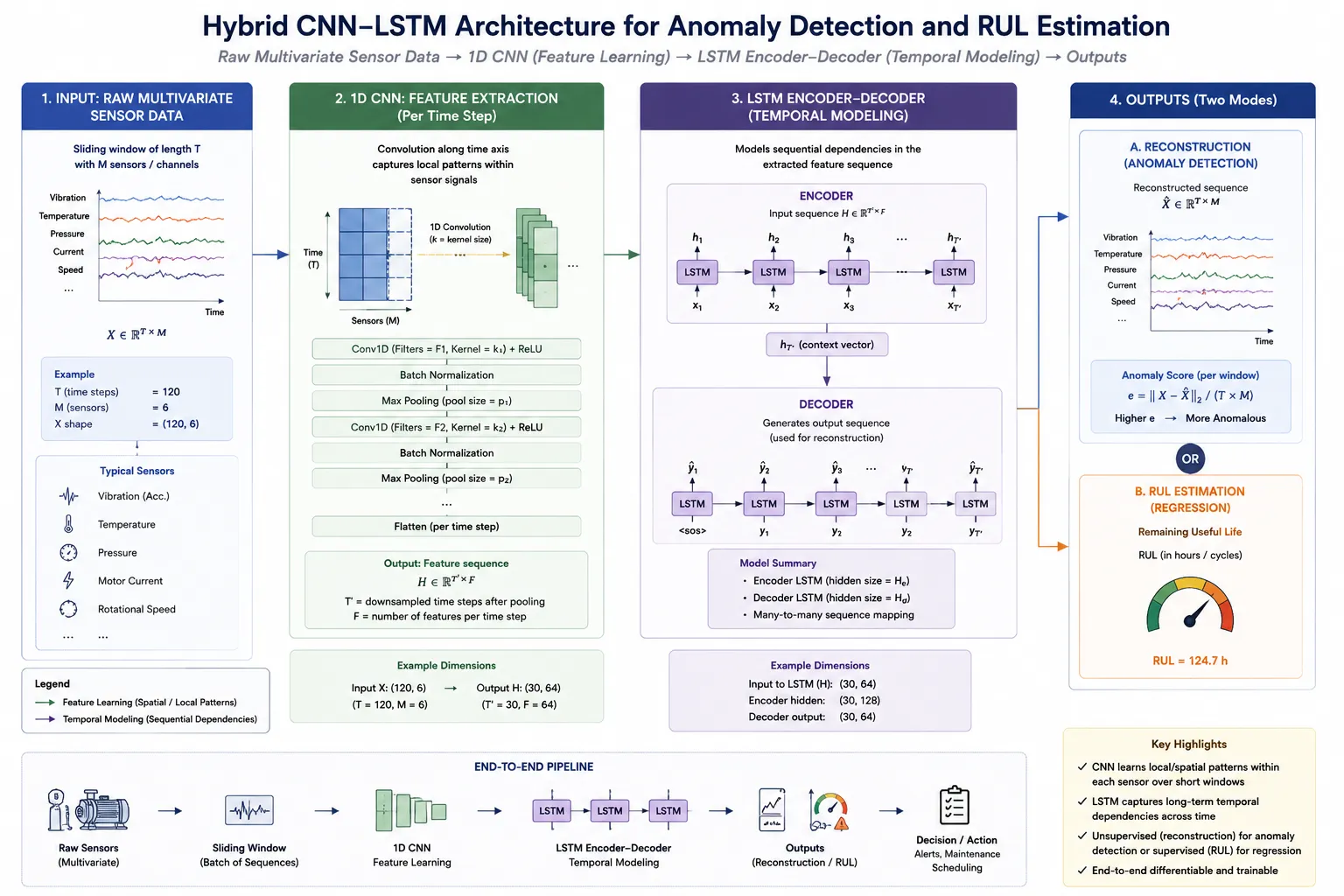

Hybrid CNN–LSTM Architectures

Hybrid approaches stack a CNN feature extractor (on raw or frequency-domain inputs) with an LSTM sequence model, capturing both local patterns and longer-term temporal dynamics. CNN–LSTM–AE architectures have been deployed for vibration-based anomaly detection in manufacturing equipment, achieving robust performance across multiple fault types.

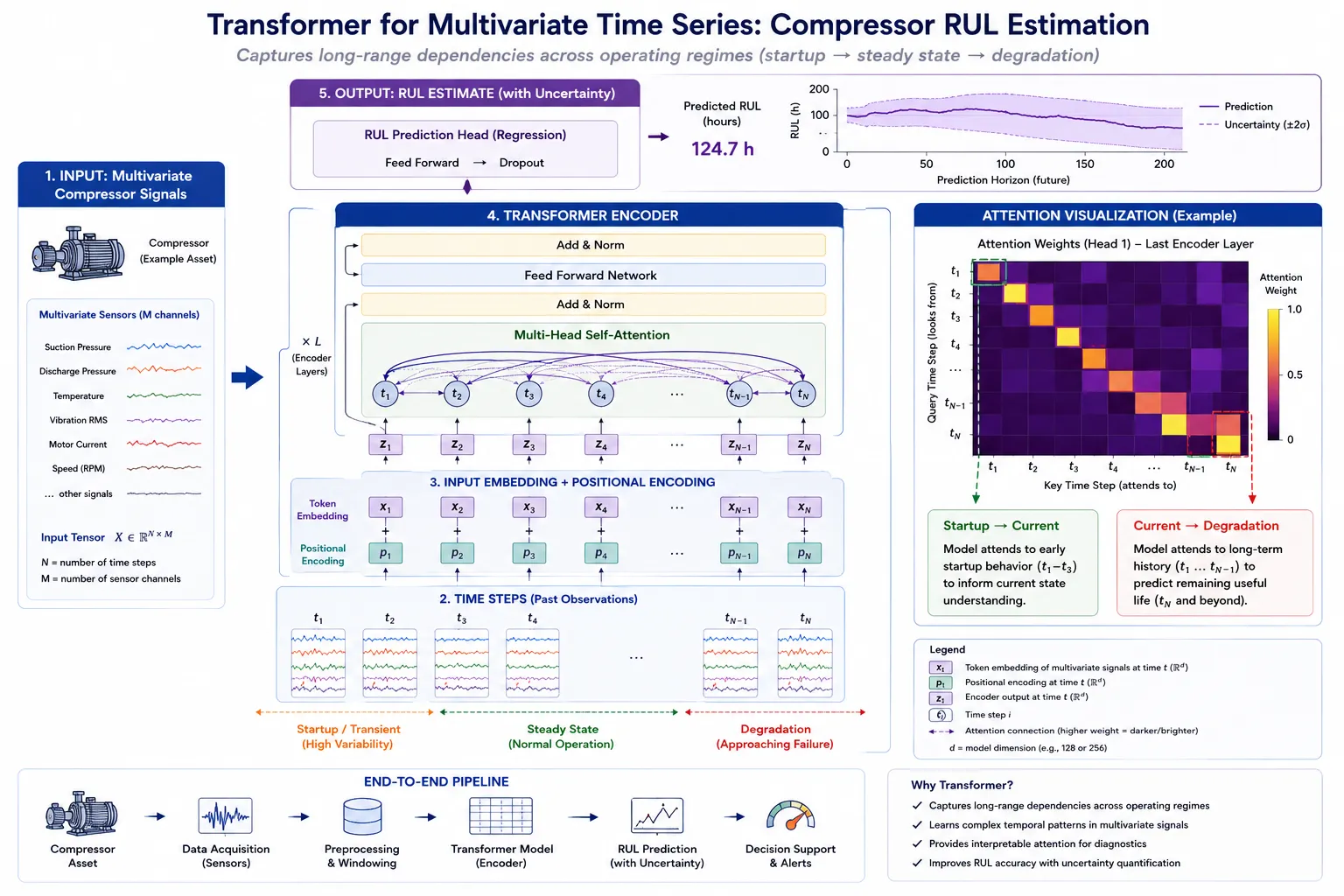

Transformers for RUL and Fault Prediction

Transformers, originally designed for NLP, are increasingly applied to time-series in industrial predictive maintenance. Self-attention allows the model to learn which time steps and variables are most relevant to predicting faults or RUL, without the inductive bias of sequential recurrence.

Recent work includes:

• THOR (triple-phase boost transformer): a transformer-based model for multivariate time-series classification and unsupervised anomaly detection in industrial equipment, demonstrating strong performance on benchmark datasets

• Transformer-based RUL frameworks: transformer encoders pre-trained via masked reconstruction or contrastive objectives on machine sensor data, then finetuned for RUL prediction

• TranDRL: a Transformer-driven deep reinforcement learning framework where Transformers predict RUL and DRL optimizes maintenance policies

These studies report improved accuracy and robustness versus LSTMs in long-sequence settings, at the cost of higher computational and memory requirements.

Advantages and Challenges

Advantages for AI predictive maintenance:

• • -Global receptive field captures long-term degradation and seasonality
• • -Multi-head attention can model cross-sensor relations (e.g., interaction between vibration and process pressure)
• • -Pretraining on large unlabeled IIoT datasets enables powerful representations for downstream PdM tasks

Challenges:

• • -Quadratic complexity with sequence length (mitigated by sparse or hierarchical variants)
• • -Data-hungry; small labeled PdM datasets may not fully exploit model capacity
• • -Interpretability: attention maps help, but engineers may still prefer simpler models for critical decisions

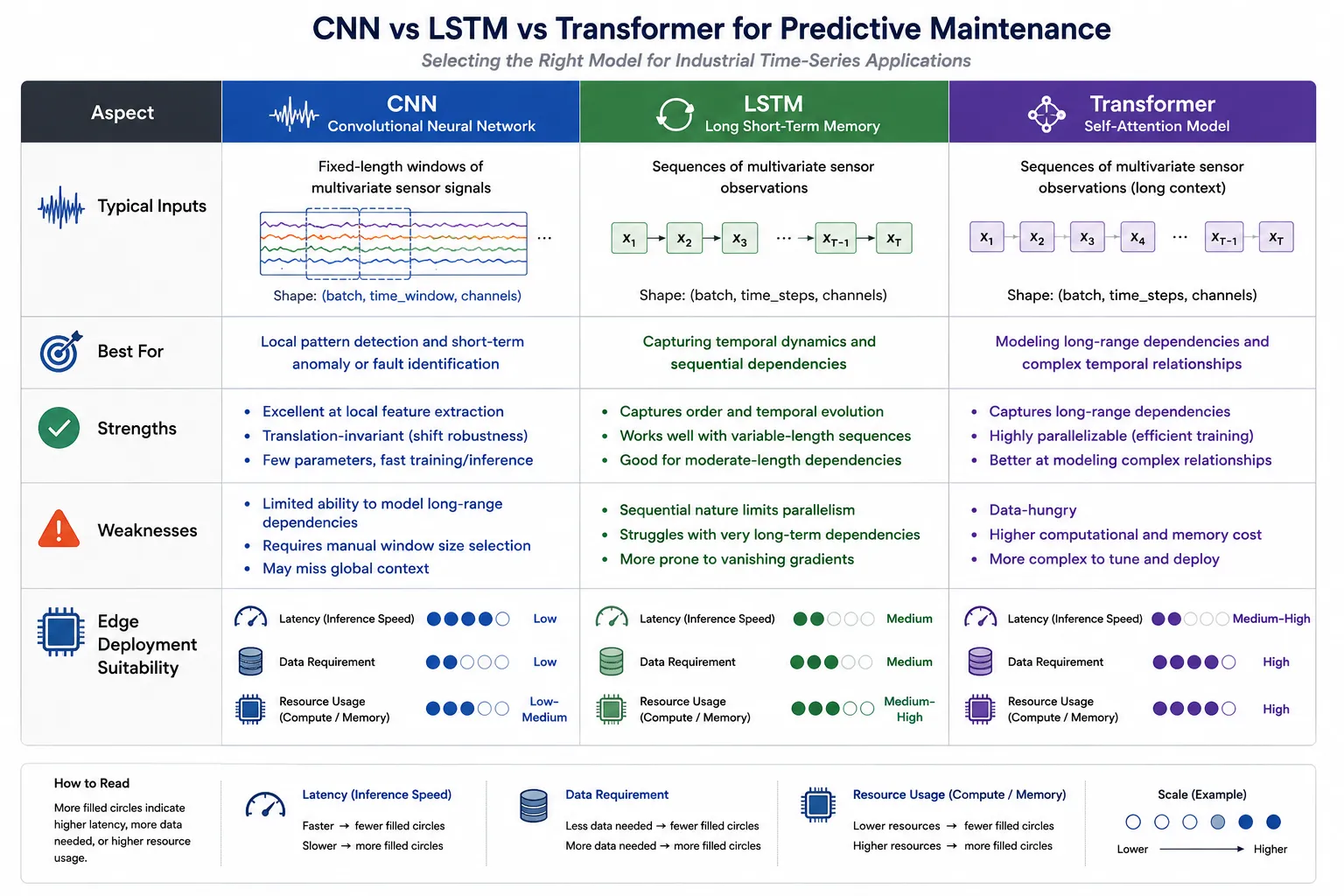

We can now compare model families along key dimensions relevant to IoT predictive maintenance:

• • -Local vs global modeling: CNNs excel at local patterns; LSTMs and Transformers capture longer dependencies
• • -Latency: CNNs are typically fastest; LSTMs slower; Transformers vary (can be optimized with efficient attention)
• • -Data requirements: Transformers often require more data; CNNs/LSTMs can work with smaller labeled sets (sometimes augmented with simulated faults)
• • -Interpretability: CNN filters can be connected to frequency ranges; LSTM hidden states are opaque but time-aligned saliency helps; Transformers offer attention maps as partial explanations
• • -Deployment footprint: For edge devices and embedded predictive maintenance solutions, compressed CNNs and small LSTMs are easier to deploy; Transformers are more common in server-side or GPU-accelerated environments

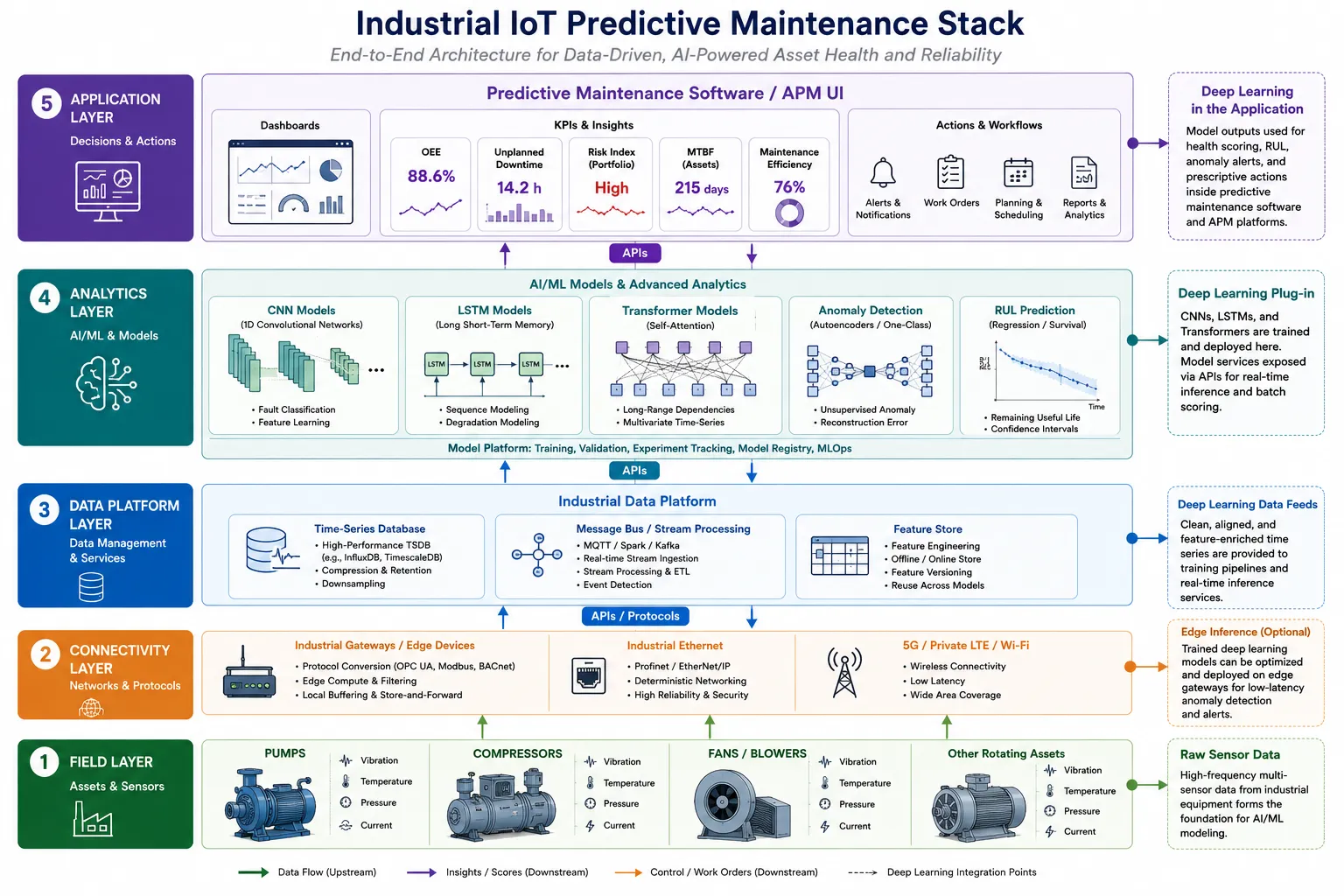

APM and PdM Platforms

Deep learning models only deliver value when integrated into predictive maintenance software, APM, and maintenance workflows. Major asset performance management vendors and cloud IoT platforms (e.g., GE Vernova APM, Prometheus RapidAPM, Azure IoT, GE Predix) incorporate AI predictive maintenance models—sometimes deep learning—into their offerings. These platforms typically provide:

• • -Data ingestion and historian integration
• • -Model management and scoring services
• • -Dashboards for health indices, risk scores, and recommended actions
• • -Integration with CMMS for work order generation

In this context, CNN/LSTM/Transformer models appear as pluggable analytics components inside predictive maintenance solutions, feeding real-time asset health into industrial predictive maintenance dashboards.

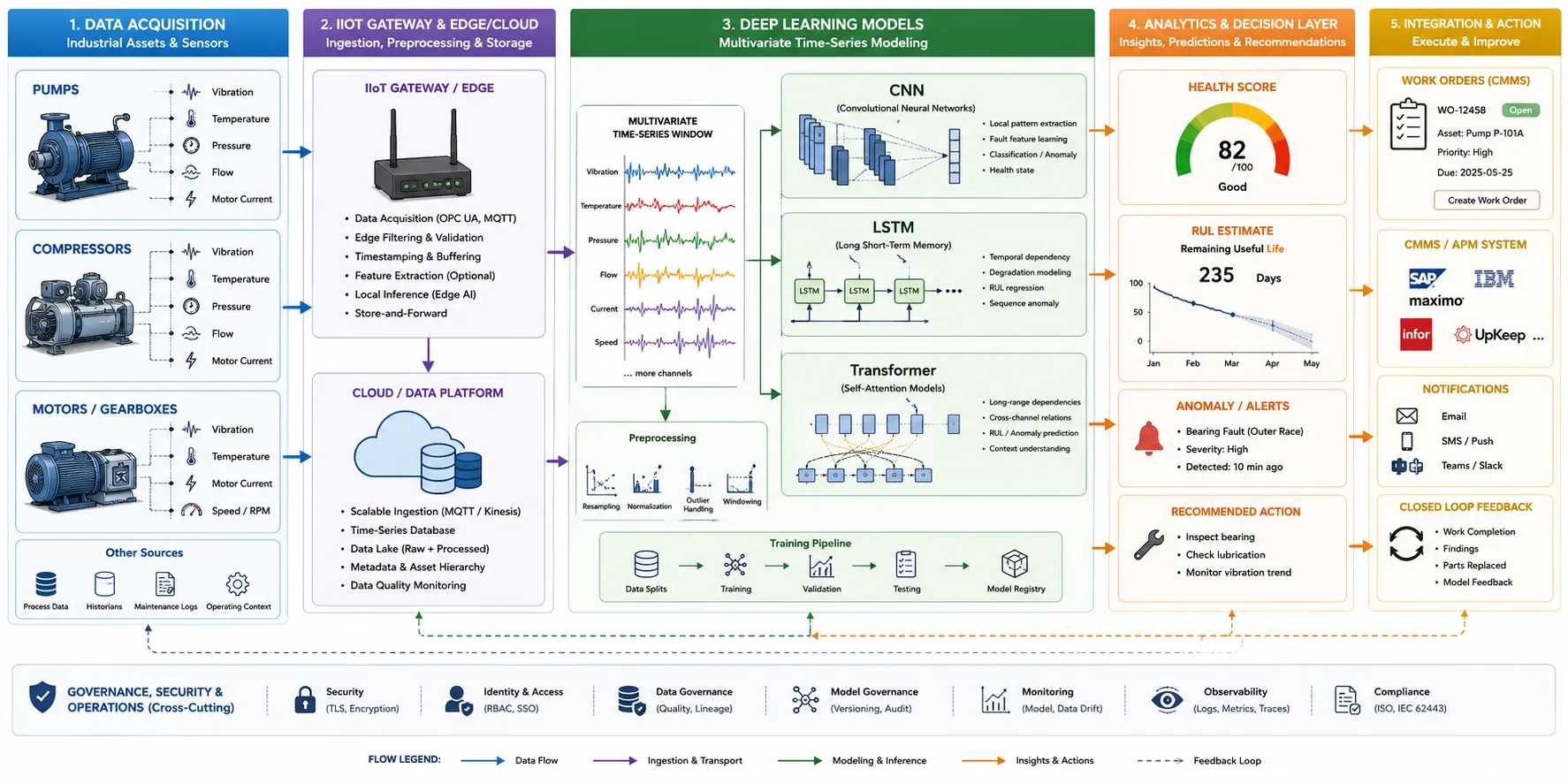

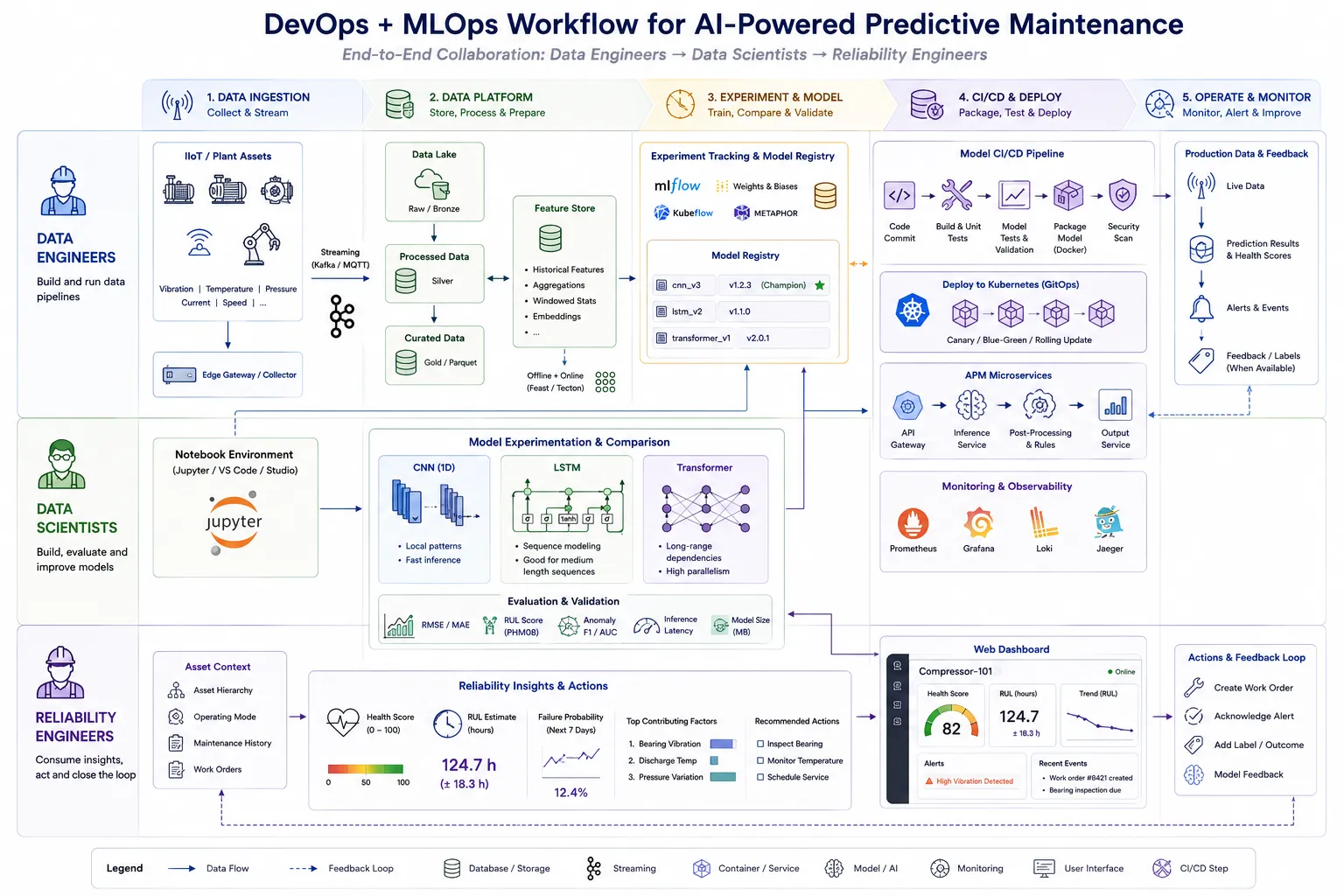

Architecting AI PdM Pipelines

An end-to-end AI predictive maintenance pipeline typically includes:

• • -Data engineering: Streaming and batch ingestion from sensors, historians, and logs; Data quality checks, alignment, and resampling
• • -Feature & label pipeline: Windowing, normalization, possibly STFT or other transforms; Labeling via failure logs, alarms, or RUL targets
• • -Model training & selection: Experiments comparing CNN, LSTM, and Transformer baselines; Hyperparameter tuning and cross-validation
• • -Model deployment: Containerized microservices or edge deployments; Monitoring of model drift, performance, and resource usage
• • -Decision integration: Thresholds, risk scoring, and recommended maintenance actions surfaced via predictive maintenance software

Rotating Equipment (Motors, Turbines, Fans)

Rotating equipment is the classic domain for industrial predictive maintenance. Vibration-based condition monitoring, augmented with deep learning, has achieved high fault detection accuracies and early anomaly detection.

Template:

• • -Data: tri-axial vibration, bearing temperature, power consumption
• • -Models: CNN or CNN–LSTM for fault classification (bearing defects, imbalance); LSTM/Transformer for RUL prediction based on run-time histories
• • -Outputs: fault type probabilities, RUL distributions, recommended inspection and repair dates

Compressors

Compressors are critical in oil & gas, petrochemicals, and refrigeration. Failure can be catastrophic and expensive. PdM literature emphasizes combining pressure, temperature, vibration, and flow signals to detect surge, fouling, and mechanical faults.

Template:

• • -Data: suction/discharge pressure, temperature, flow, vibration, motor current
• • -Models: LSTM/Transformer for anomaly detection relative to operating map; CNN on time–frequency vibration data for specific mechanical faults
• • -Outputs: anomaly scores, warnings about efficiency loss or surge risk, RUL estimates for bearings/seals

Pumps

Pumps are ubiquitous; cavitation, seal failures, and bearing wear are common problems.

Template:

• • -Data: vibration, suction/discharge pressure, motor current, flow, temperature
• • -Models: 1D CNN for cavitation vs normal vs misalignment; LSTM or Transformer for flow/pressure anomalies indicating process issues
• • -Outputs: root-cause hints (e.g., "cavitation suspected," "partial blockage likely"), with severity scores

In all three templates, models are embedded in predictive maintenance solutions or APM platforms, enabling asset performance management predictive maintenance strategies that balance risk, cost, and production constraints.

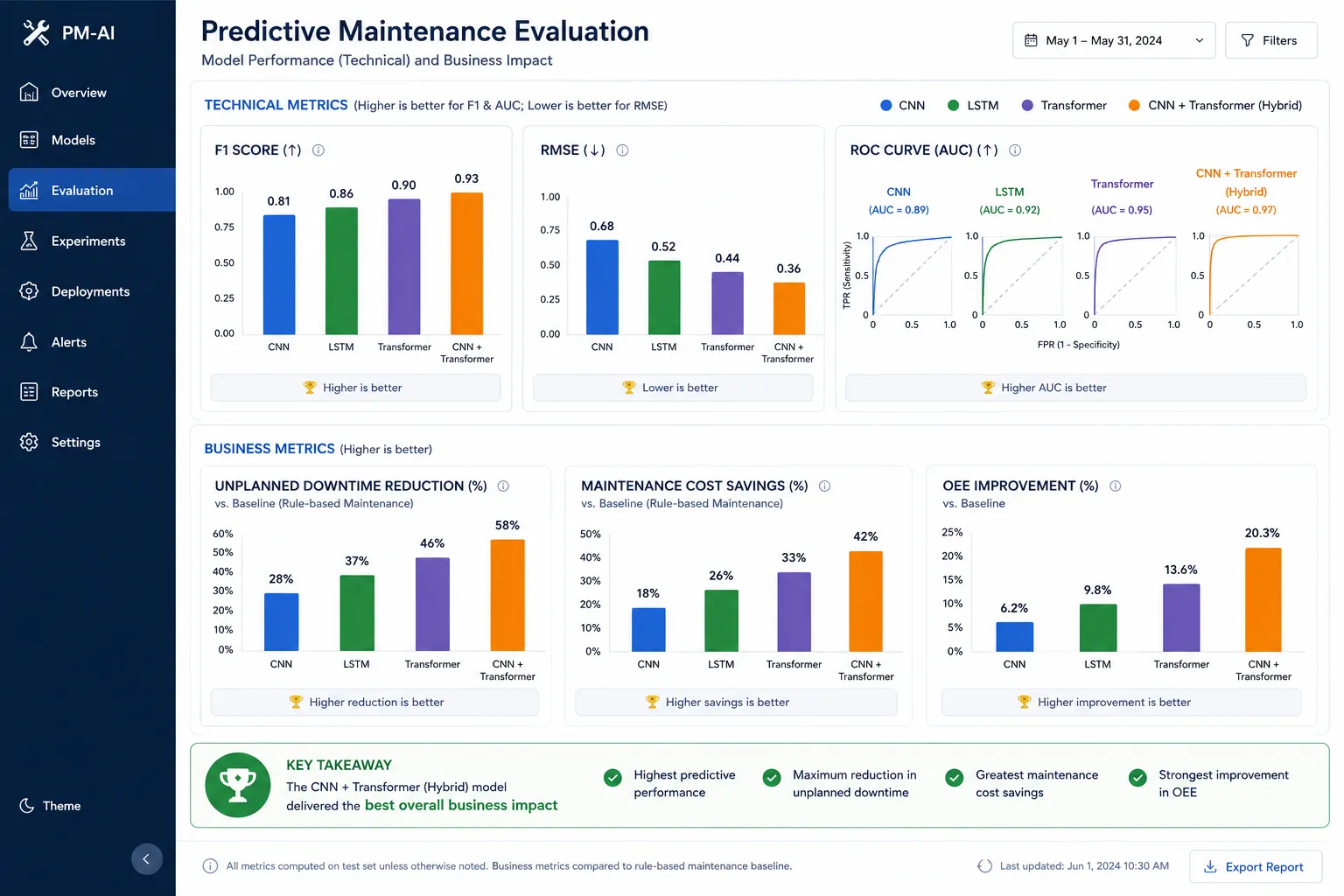

Technical Metrics

For deep learning models in AI predictive maintenance, standard metrics include:

• • -Classification tasks: accuracy, precision, recall, F1-score, confusion matrix, per-class ROC-AUC
• • -RUL regression: RMSE, MAE, and scoring functions penalizing late/early predictions asymmetrically
• • -Anomaly detection: ROC-AUC, PR-AUC, and time-to-detect metrics on simulated or historical events

Cross-validation across machines and operating conditions is critical to assess generalization (e.g., leave-one-machine-out).

Operational and Business Metrics

Because predictive maintenance must demonstrate value beyond model scores, operational KPIs include:

• • -Reduction in unplanned downtime
• • -Maintenance cost savings vs preventive or reactive baselines
• • -Improvement in safety and environmental incident rates
• • -Impact on OEE and production throughput

APM market analyses emphasize that predictive maintenance software and APM platforms are adopted when they demonstrably improve reliability, availability, and performance—not just model accuracy in offline experiments.

Key challenges for industrial predictive maintenance with deep learning include:

• • -Data labeling and imbalance: Failures are rare; normal data dominates. Strategies include anomaly detection, data augmentation, and cost-sensitive loss functions
• • -Domain shift: Models trained on one plant or equipment type may not generalize to others due to different operating regimes or sensor setups. Transfer learning, domain adaptation, and per-site finetuning are common remedies
• • -Concept drift: As assets age or operating conditions change, data distributions shift. Continuous monitoring, periodic retraining, and model performance tracking are needed
• • -Interpretability and trust: Maintenance engineers might resist opaque models; attention visualizations, saliency maps, and rule-based summaries can help explain predictions

Best practices:

• • -Start with well-bounded use cases and high-quality sensor setups
• • -Benchmark baseline models (e.g., CNN vs LSTM) before adopting more complex Transformers
• • -Align model outputs with existing maintenance workflows and human decision-making
• • -Wrap models inside robust predictive maintenance software with clear UIs and alerting logic

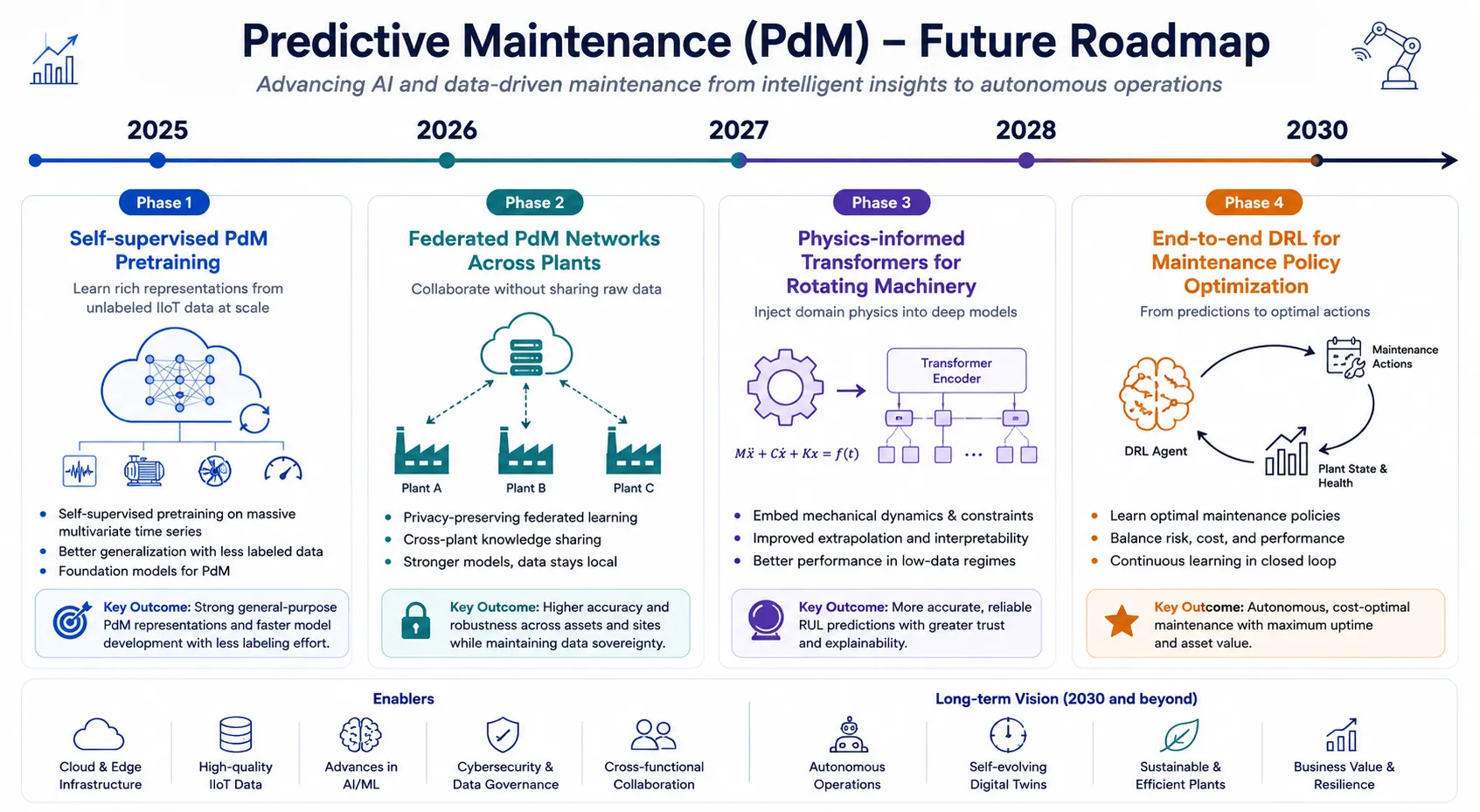

Emerging research directions for AI predictive maintenance include:

• • -Self-supervised and contrastive learning on large unlabeled industrial time-series to reduce reliance on labeled fault data
• • -Federated and privacy-preserving learning across multiple plants or companies, enabling collaborative modeling without sharing raw data
• • -Physics-informed and hybrid models that combine deep learning with first-principles models of rotating machinery and fluid dynamics
• • -Decision-aware modeling: integrating RUL predictions with reinforcement learning for optimal maintenance scheduling (as in TranDRL) and integrating cost models directly into training objectives

Deep learning—via CNNs, LSTMs, and Transformers—is reshaping predictive maintenance in Industrial IoT systems. For rotating equipment, compressors, and pumps, these models deliver superior fault detection, anomaly detection, and RUL prediction compared with traditional approaches, enabling more effective AI predictive maintenance strategies. Reviews and case studies in rotating machinery consistently show strong gains in accuracy and earlier detection of subtle degradation signatures.

However, model choice is not one-size-fits-all. CNNs often provide the best trade-off between performance and latency in edge scenarios; LSTMs shine when explicit sequence modeling is needed; and Transformers push state of the art in complex, long-horizon tasks but require more data and compute. The most effective predictive maintenance solutions combine these models with strong data engineering, MLOps, and integration into predictive maintenance software and APM platforms that maintenance teams already use.

For practitioners, a pragmatic strategy is to:

• • -Start with clear use cases in rotating equipment, compressors, or pumps
• • -Build baselines with 1D CNNs and LSTMs on representative sensor data
• • -Experiment with Transformer architectures when data scale and complexity warrant
• • -Integrate chosen models into IoT predictive maintenance and asset performance management predictive maintenance workflows, with careful evaluation of both technical and business KPIs

Done well, deep learning in industrial predictive maintenance turns raw sensor streams into actionable foresight—allowing organizations to reduce downtime, extend asset life, improve safety, and unlock new value from their IIoT investments.

1. Li, X., Zhang, W., Ma, H. et al. "A review of the application of deep learning in intelligent fault diagnosis of rotating machinery." Measurement, 2023. https://link.springer.com/article/10.1007/s10462-022-10293-3

2. Alexakis, C. et al. "Predictive Maintenance of Machinery with Rotating Parts Using Convolutional Neural Networks." Electronics, 13(2):460, 2024. https://www.mdpi.com/2079-9292/13/2/460

3. Ali, M. I., Lai, N. S., and Abdulla, R. "Predictive Maintenance of Rotational Machinery Using Deep Learning." International Journal of Electrical and Computer Engineering, 14(1), 2024.

4. "CNN-LSTM-AE Based Predictive Maintenance Using STFT for Rotating Machinery." Journal of Manufacturing Systems, 2023.

5. "A Predictive Maintenance Model Using Long Short-Term Memory Neural Networks and Bayesian Inference." Engineering Applications of Artificial Intelligence, 2023.

6. "Deep Learning for Predictive Maintenance in Rotating Machinery." Journal of Fluid Machinery and Mechanical Design, 2023.

7. "Artificial Intelligence in Predictive Maintenance of Rotating Machinery: A Review." Saudi Journal of Engineering and Technology, 2023.

8. "A Triple-Phase Boost Transformer Model (THOR) for Time-Series Multi-Label Fault Prediction." Neurocomputing, 2024.

9. Heinrich, F. "Pretraining Transformers for Predictive Maintenance in Manufacturing." M.Sc. Thesis, FAU Pattern Recognition Lab, 2024.

10. "Multivariate Time Series Generation Based on Dual-Channel Transformer for RUL Prediction." Knowledge-Based Systems, 2024.

11. Zhang, Y. et al. "TranDRL: A Transformer-Driven Deep Reinforcement Learning Enabled Framework for Predictive Maintenance." arXiv:2309.16935, 2023. https://arxiv.org/abs/2309.16935

12. Pasupuleti, S. "Scalable Predictive Maintenance System for Industrial Equipment Using Transformer-Based Time Series Modeling." GitHub project, 2024. https://github.com

13. Vicencio, A. et al. "Systematic Review of Predictive Maintenance Practices in the Manufacturing Industry." Journal of Industrial Information Integration, 2025.

14. GAO Tek. "Industrial Equipment Monitoring – Predictive Maintenance IoT." Technical overview, 2024.

15. Intuz. "IoT in Predictive Maintenance: A Complete Overview." Blog/whitepaper, 2025.

16. WIKA. "Predictive Maintenance of Rotating Machinery in Industrial IoT." Product brochure, 2024.

17. Cutsforth. "Implementing Predictive and Prescriptive Digital Maintenance Technologies for Rotating Equipment." Technical paper, 2025.

18. Anvil. "AI in Predictive Maintenance for Rotating Machinery." Blog, 2025.

19. IJRP. "IoT-Based Predictive Maintenance System for Industrial Machinery." International Journal of Research and Analytical Reviews, 2025.

20. Gartner. "Asset Performance Management Software Market Definition and Reviews (2025)." Gartner Peer Insights, 2025.

21. GE Vernova. "Asset Performance Management (APM) Software." Product documentation, 2025. https://www.gevernova.com/software/products/asset-performance-management/meridium

22. Prometheus Group. "RapidAPM – AI/ML Asset Performance Management Platform." Data sheet, 2025. https://www.prometheusgroup.com/solutions/asset-performance-management-software

23. Manufacturing Digital. "Top 10 Predictive Maintenance Platforms." Manufacturing Digital, 2024.

24. SoftwareConnect. "Top 7 Predictive Maintenance Software (2025 Reviews)." 2025.

25. Coast App. "7 Best Predictive Maintenance Software for 2025." Blog, 2025.

26. Ombrulla. "AI Predictive Maintenance for Transformers." Solution page, 2025. https://ombrulla.com

27. NASA. "C-MAPSS Aircraft Engine Simulator Data." NASA Data Portal, 2025. https://data.nasa.gov/dataset/c-mapss-aircraft-engine-simulator-data

28. IEEE DataPort. "C-MAPSS Dataset." IEEE DataPort, 2025. 1
